CRYOLIPOSCULPT



Principle of Cryoliposculpt.

Cryolipolysis is a non-invasive fat removal procedure that works on the principle of a process referred to as “selective cryolisis”. Subcutaneous fat cells (fat cells situated between the skin and muscle layers) are more vulnerable to the effects of low temperature than other surrounding tissues, and prolonged cooling of these fat cells can cause a reduction in numbers, without damaging any of the surrounding tissues. These lipids are then transported by the lymphatic drainage system to be processed and eliminated through the body naturally. This process is very gradual, meaning that there is no danger for the lymphatic system to be overloaded.



Why Cryoliposculpt.

  • Delivers optimized toning and cooling energy for local reduction of fat cells and reshaping of body contours.
  • Micro-current effectively enhances the treatment results and skin elasticity.
  • Can be treated up to 4 areas simultaneously.
  • No damage to other skin tissues or skin surface.
Biotec Italia  Cryoliposculpt

Clinical Treatment Protocol For The Body

A cooling cycle at a controlled temperature up to -10°C freezes and crystallizes the fat cells around the area. Simultaneously, the area exposed to the treatment is stressed by contraction of micro-currents and modulated with different forms and pulses emitted sequentially into different skin layers. The crystalized fat cells undergo apoptosis and are eliminated through normal metabolic processes, resulting in gradually reducing the fat layers while restoring skin contouring in the weeks and months following the treatment.


The use of a sequence electric frequencies triggers fat metabolism.

Cooling cycle delivers controlled cooling to crystallize fat cells.

Crystalized fat cells gradually die off and are naturally eliminated through metabolic processes.

In the weeks and the months following treatment, remaining fat cells condense, reducing the fat layer.
Fit4® technology : unparalleled treatment speed.
Choice of multiple handpieces

Choice of multiple handpieces

You can choose up to 4 handpiece sizes to suit tissues of different consistency and location. The ergonomics of the handpiece, made of pure ABS material, guarantees optimal coupling with the skin and a high level of thermal insulation.
CoolFrequency®

CoolFrequency®

Low frequency modulated pulse cycles generate tissue microcontractions in the absence of heat. The intensity of the bio-stimulating pulses is regulated by the doctor according to the patient’s tolerance, and is gradually increased to ensure maximum effectiveness and high comfort on relaxation of the skin.
Temperature monitoring

Temperature monitoring

A temperature sensor in contact with the plate in the handpiece preserves the safety and effectiveness of the procedure. The temperature sensor dynamically controls the cooling of the plates while keeping the temperature stable at -10°C.
Vacupulse®

Vacupulse®

The active, continuous and customizable suction maintains contact between the handpiece plates and the tissue, essential to preserve the local microcirculation. The constant mobilization of the tissue eliminates the risk of surface freezing that frequently occurs with similar technologies.

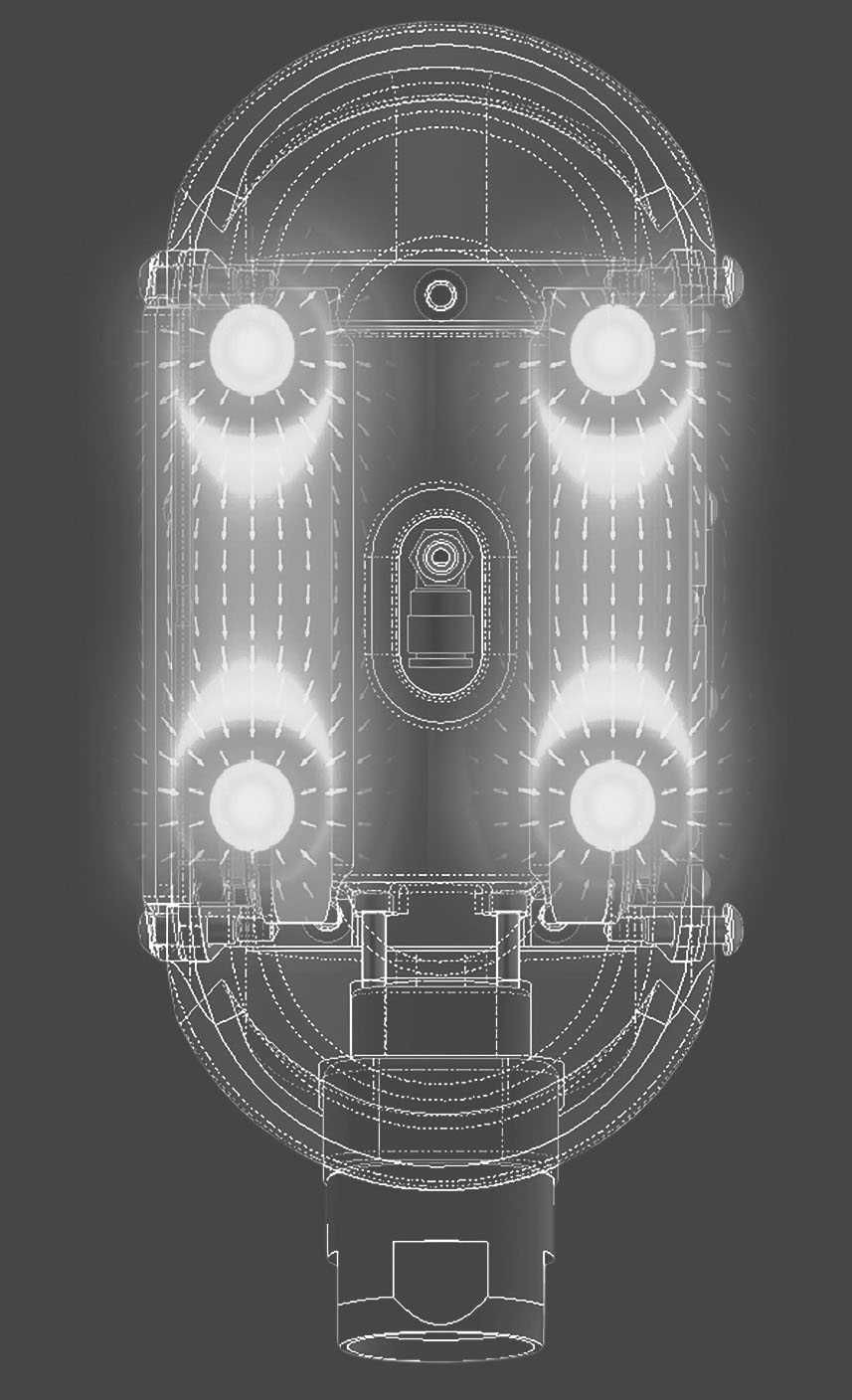

MEDIUM APPLICATOR

Made of non-toxic ABS material, the handpiece is electrically and thermally insulated, protecting both patient and operator, while its light weight and ergonomics make it easy to handle and comfortable to use for the specialist.

The plates, in AISI 316 LVM medical-grade stainless steel, have an excellent resistance to corrosion and pitting, making the treatment safer and more effective. Dimensions 168x86x110

<b>LARGE APPLICATOR</b>

LARGE APPLICATOR

 (Optional)
<b>FACE MINI COMBO TRIO APPLICATOR</b>

FACE MINI COMBO TRIO APPLICATOR

 (Optional)

Ergonomics, Design, Reliability

Light and easily handled

Convenient grip of the applicator allows quick and effortless positioning.

Suction with active traction

It causes tissue loosening and modifies the strength and elasticity of the connective tissue.

Thermal monitoring

It constantly monitors the temperature reached on the skin by reporting the data on the monitor.

Electric field

It stimulates intra and extracellular ion exchange, allowing the correct functioning of the cells.

Uniform cooling

Rapid cold absorption and high heat exchange capacity due to the ergonomics of the applicator.

BEFORE AND AFTER TREATMENTS - CRYOLIPOSCULPT

GENERAL TECHNICAL SPECIFICATIONS

Power Supply Voltage : 240 Vac – 50 / 60 Hz
Maximum Power : 600 v
Fuses : 2 x F4A 250V / I BF
Dimension (W x D x H) : 450 x 500 x 420 mm
Weight : 42 kg

CYRO TECHNICAL SPECIFICATIONS

Minimum Temperature : -10°C
Operation Mode : Continuous

VACUUM TECHNICAL SPECIFICATION

Minimum Vacuum : 66.6 kPa
Operation Mode : Continuous

TECHNICAL SPECIFICATION ELECTRIC PULSE

Maximum Output Voltage : 120Vpp @ 1kohm
Maximum Current Density : 1,5 mA/cm2
Single Pulse Duration : < 1ms
